Detail Description

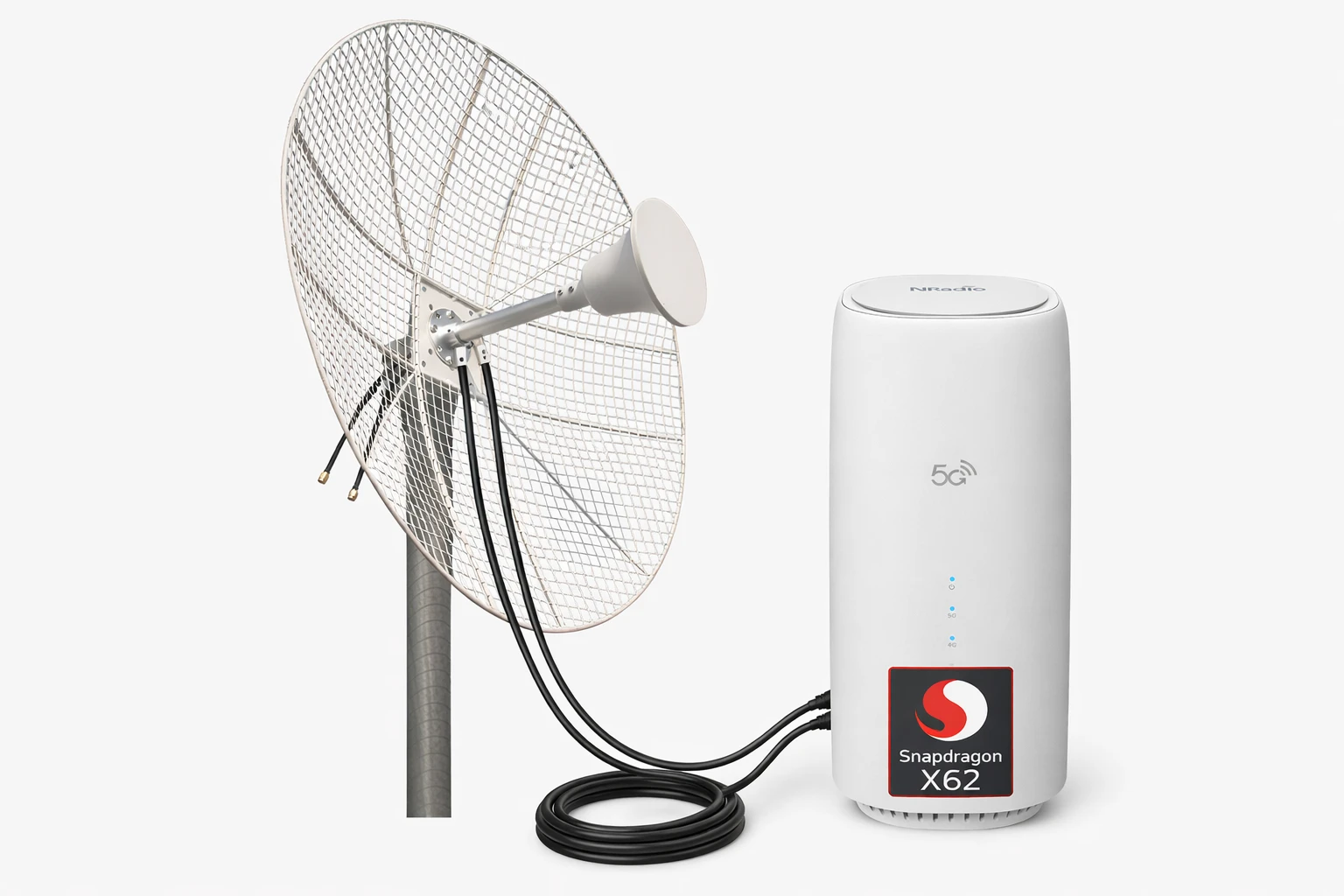

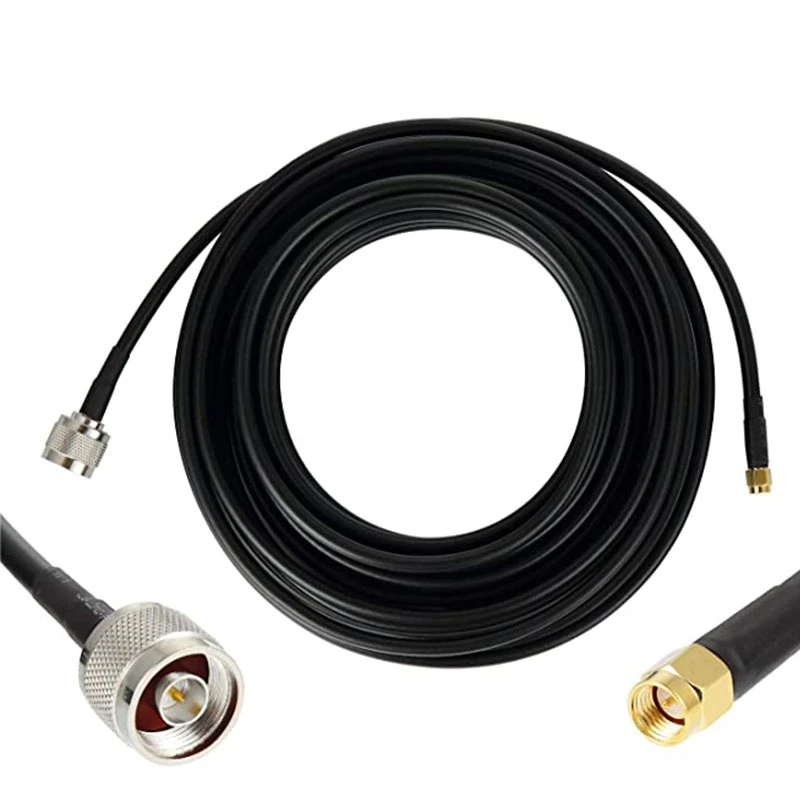

Upgrade your internet experience with powerful 5G router and MIMO antenna plus 2 cable 20 meter kits designed to deliver stronger signals and ultra-fast speeds. Perfect for areas with weak or unstable coverage, these solutions boost your connection for smooth streaming, gaming, and work.

Get reliable performance, extended outdoor coverage, and maximum 5G speed — all in one complete

antenna specification

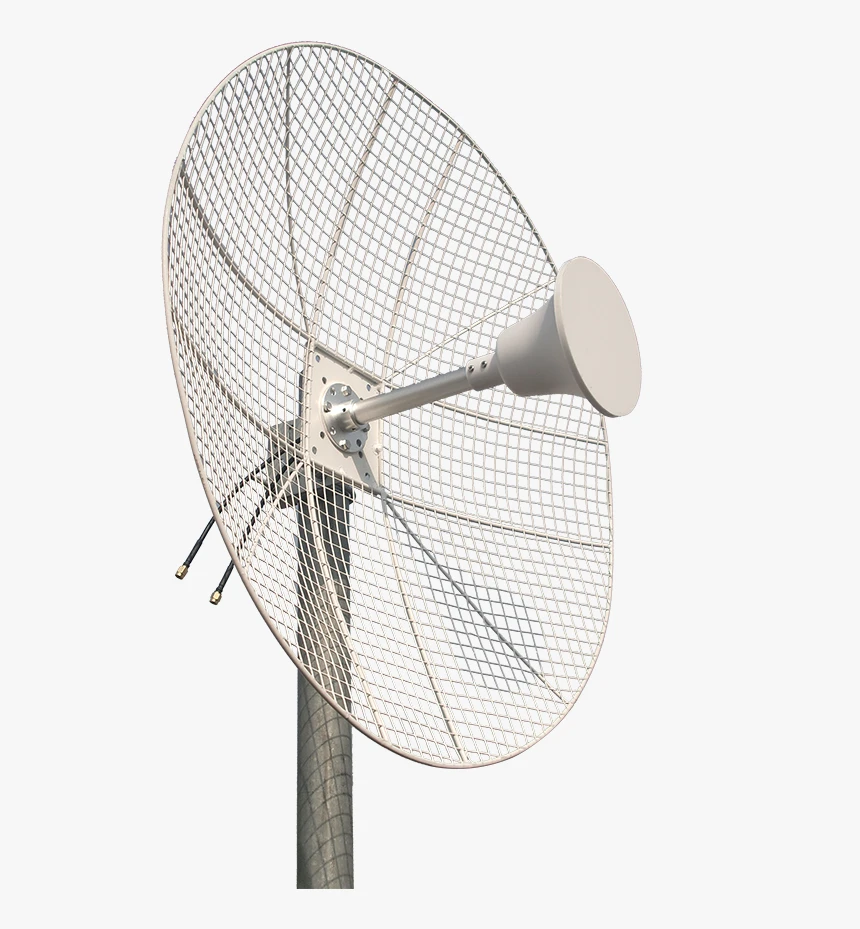

High-Performance 5G MIMO Antenna | Genex Factory

Upgrade your connectivity with Genex’s high-performance 5G MIMO Antenna, engineered to deliver ultra-fast speeds, wider coverage, and superior signal stability even in challenging environments.

Powered by advanced MIMO technology, this antenna enhances data throughput while reducing latency — making it ideal for modern wireless communication systems.

🚀 Key Features:

1. 🔹 Advanced MIMO technology for higher speed and reliability
2. 🔹 24dBi high gain for stronger signal reception
3. 🔹 Wide frequency range (600– 6000MHz) supporting 5G / 4G / LTE
4. 🔹 Weatherproof design for indoor & outdoor use
5. 🔹 Reduced interference with enhanced network efficiency
6. 🔹 Easy installation with a compact and practical design

🎯 Applications:

1. 5G CPE Devices
2. Industrial Routers
3. Smart Home Systems
4. IoT Gateways
5. Network Infrastructure

⚙️ Technical Specifications:

1. 📡 Model: ANT24Db 24PG-XP
2. 📶 Frequency Range: 1710 – 4200 MHz
3. 📊 Gain: 24±1 dBi
4. 📉 VSWR: < 2.0
5. 🔄 Polarization: Dual Slant (±45°)
6. 🔇 Isolation: 24 dB
7. 🔙 Front-to-Back Ratio: > 24 dB
8. 📐 Horizontal Beamwidth: 15° ±5 / 12° ±5
9. 📐 Vertical Beamwidth: 15° ±5 / 12° ±5
10. ⚡ Maximum Power: 50W
11. 🔌 Impedance: 50Ω
12. ⚡ Lightning Protection: DC Ground
13. 🔗 Connectors: 2× RP-SMA / N Male / N Female
14. 📏 Antenna Size: Ø0.6 m
15. ⚖️ Weight: 1 kg
16. 🎨 Color: White
17. 🏗️ Pole Diameter: 30mm – 50mm
18. 🔧 Mechanical Tilt: ±15°
19. 🌡️ Operating Temperature: -40°C to +70°C

💡 Why Choose This Antenna?

If you're looking to boost weak signals and unlock the full potential of your 5G network, this antenna provides a powerful and reliable solution for maximum performance and coverage.

Router Specifications

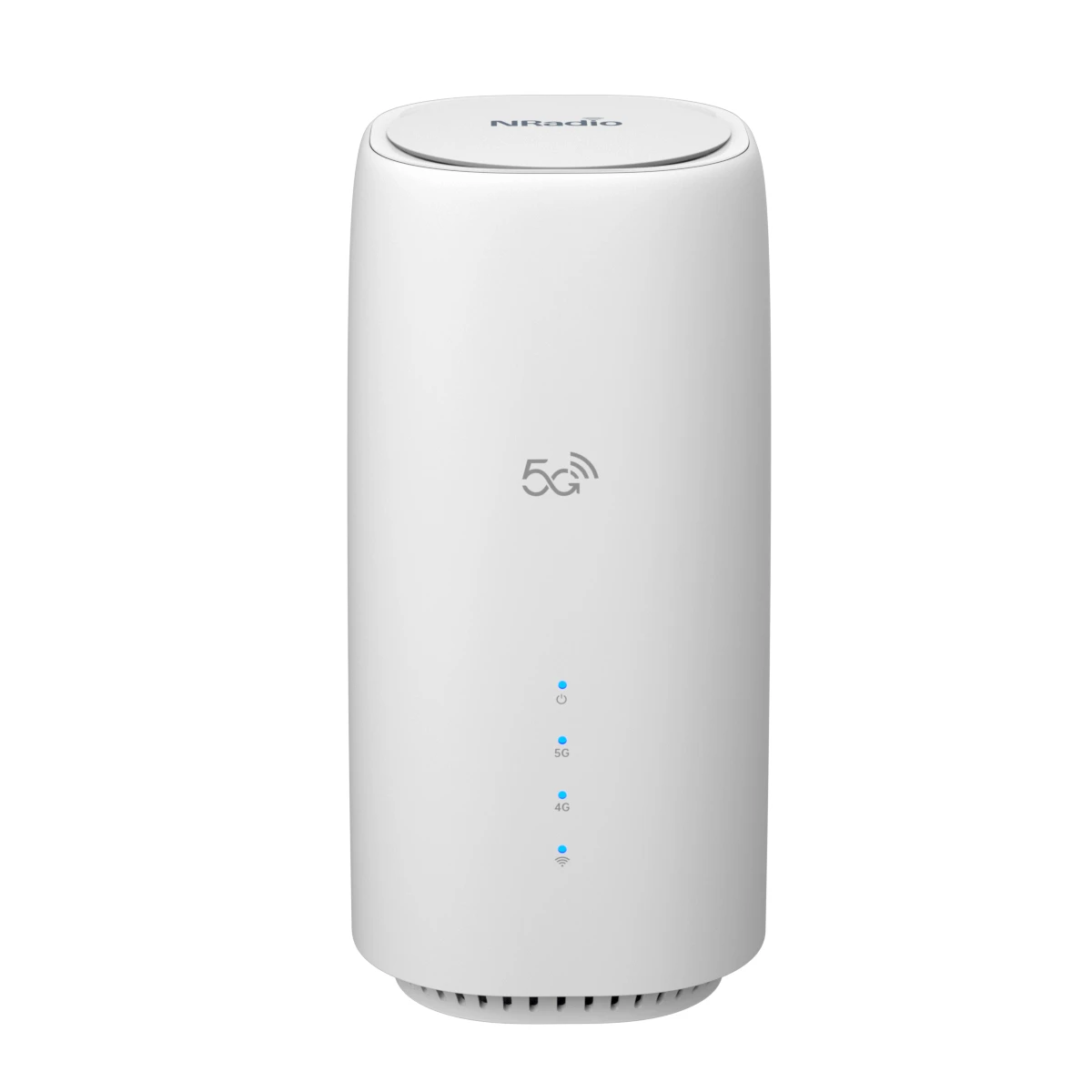

GENEX Pro 3 Plus 5G CPE – Powered by Snapdragon X62 with Wi-Fi 6 Performance

The GENEX Pro 3 Plus 5G CPE is a next-generation high-performance device designed to deliver ultra-fast and stable connectivity. Powered by the advanced Qualcomm Snapdragon X62 processor, it ensures superior 5G performance and reliability.

Built on 3GPP Release 16, the device supports 5G NR SA/NSA dual-mode networks and is fully compatible with 3G / 4G / 5G, delivering download speeds of up to 3.4Gbps for an exceptional internet experience.

With Wi-Fi 6 (AX1800) technology, it provides wireless speeds up to 1.8Gbps, along with support for MU-OFDMA and WPA3 for enhanced efficiency and security.

🚀 Key Features:

1. 🔹 Powered by Snapdragon X62 for high performance and stability
2. 🔹 Full support for 5G SA/NSA + 4G/3G networks
3. 🔹 Download speeds up to 3.4Gbps
4. 🔹 Wi-Fi 6 AX1800 for ultra-fast wireless performance
5. 🔹 8 high-gain internal antennas (4x 5G + 4x Wi-Fi) for wider coverage

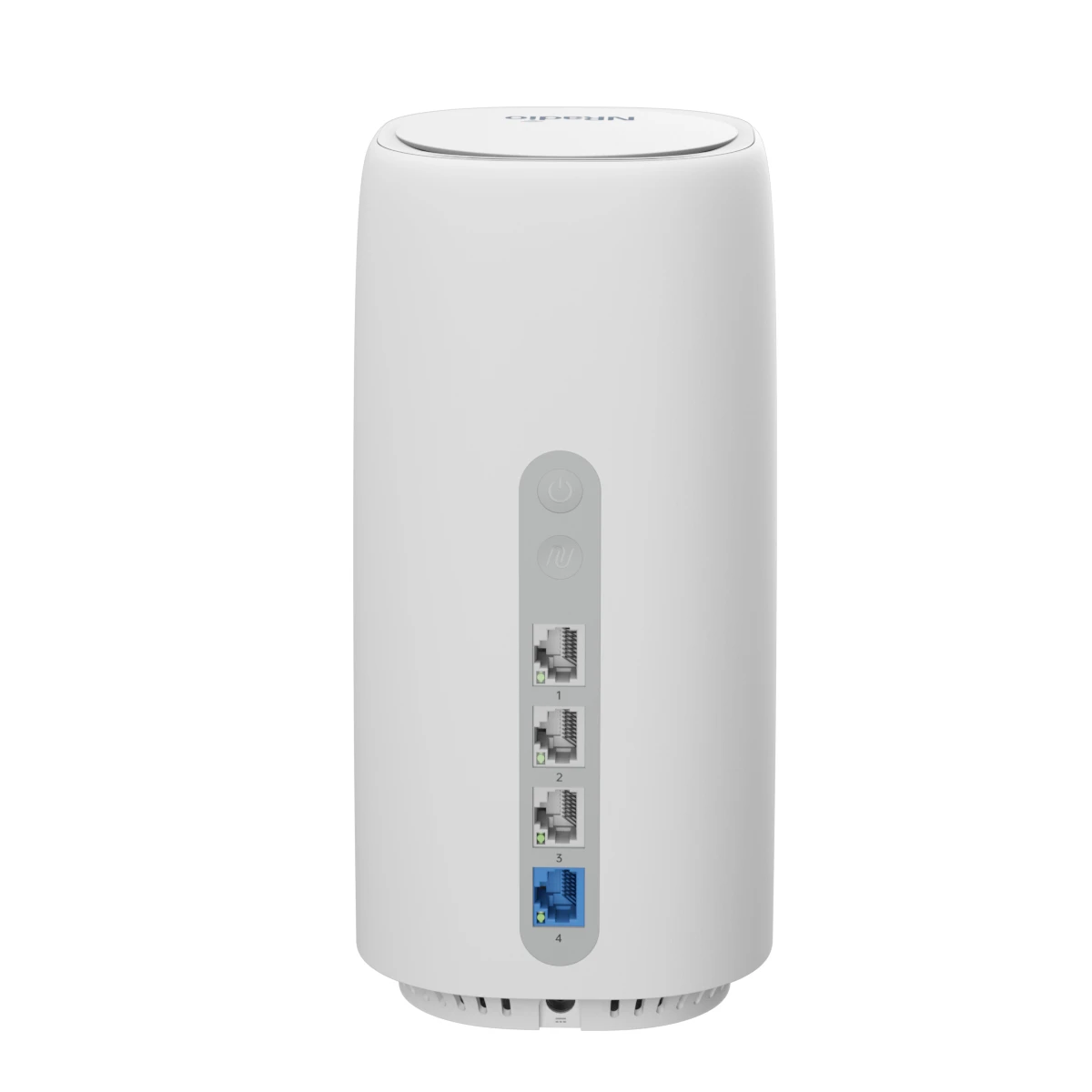

6. 🔹 1 Gigabit WAN + 3 Gigabit LAN ports
7. 🔹 Supports Mesh Networking for extended coverage
8. 🔹 Built-in VPN support for secure remote access
9. 🔹 Automatic failover between wired and cellular networks
10. 🔹 SIM Card Plug & Play for instant connectivity

💡 Applications:

Perfect for homes, offices, HD streaming, gaming, and areas with weak signal coverage.
